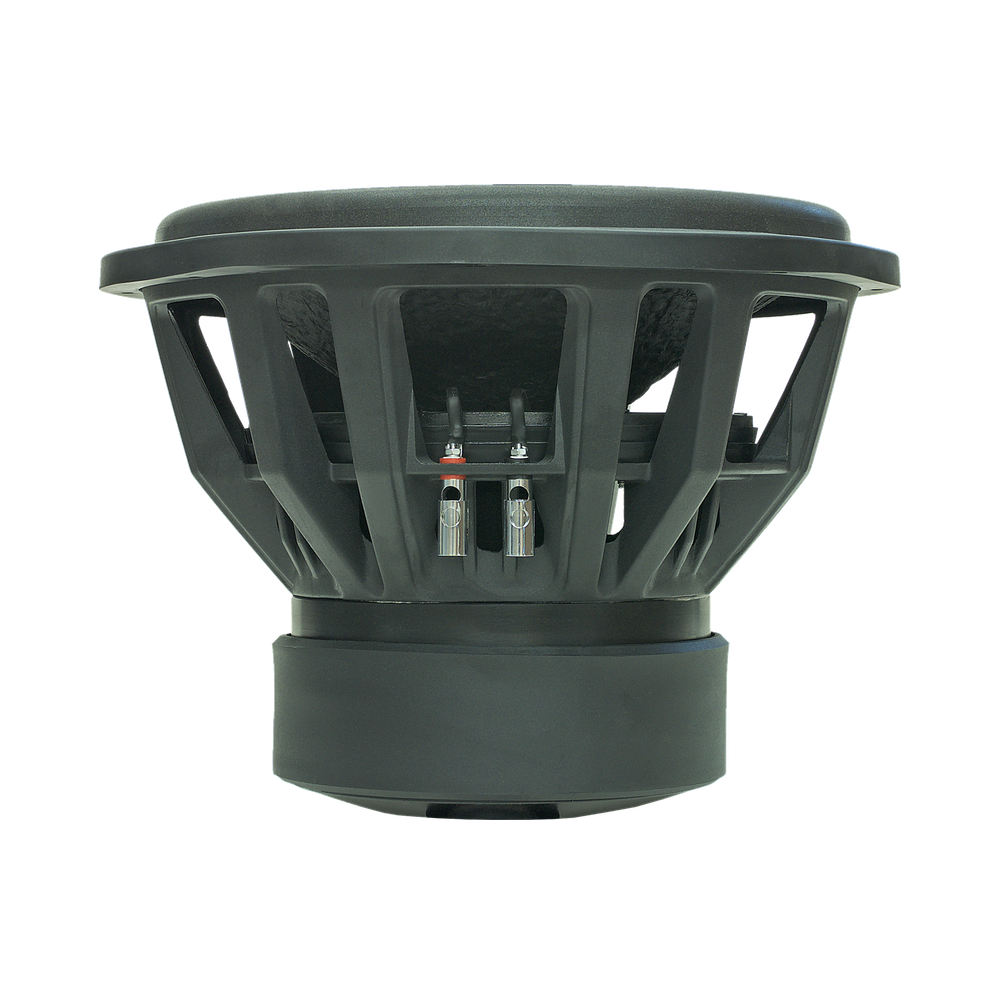

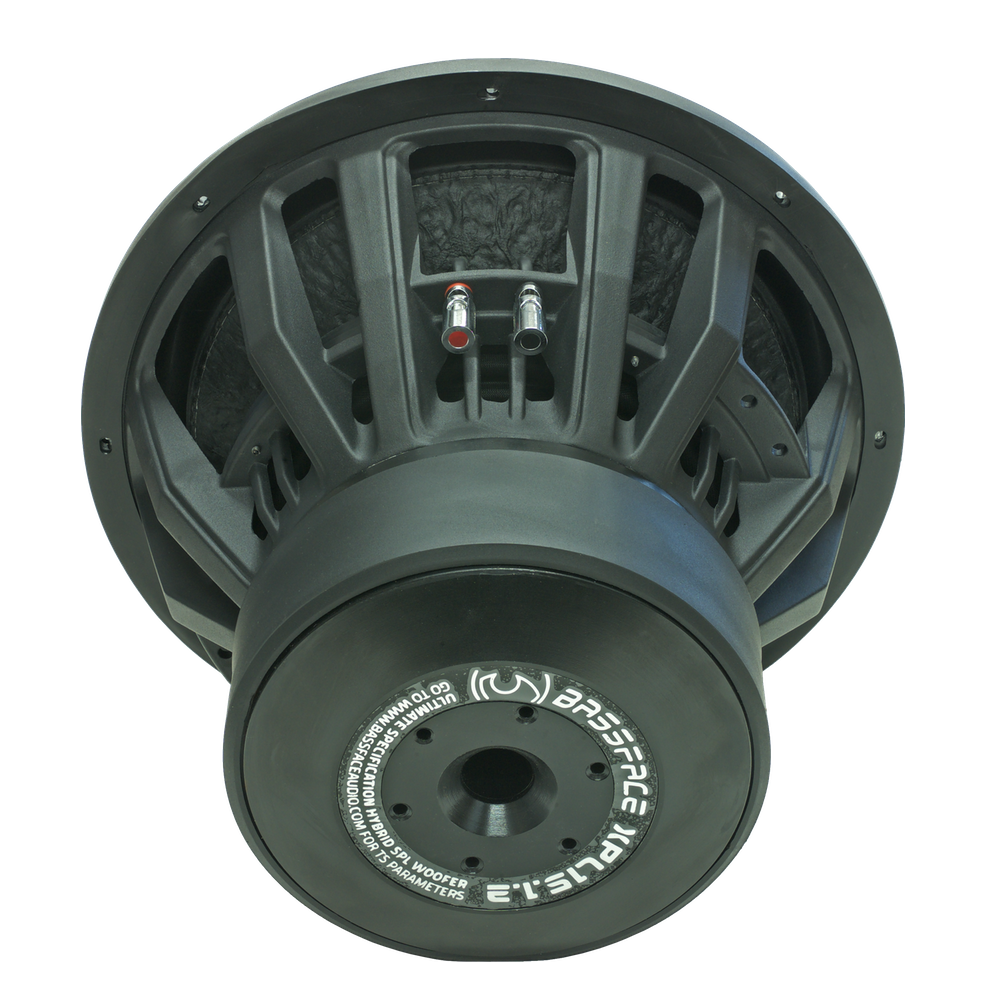

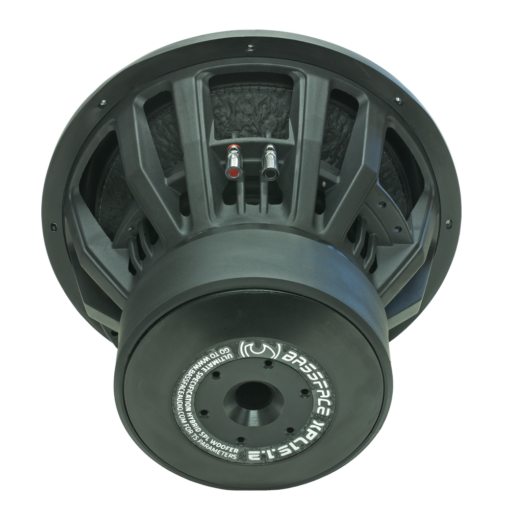

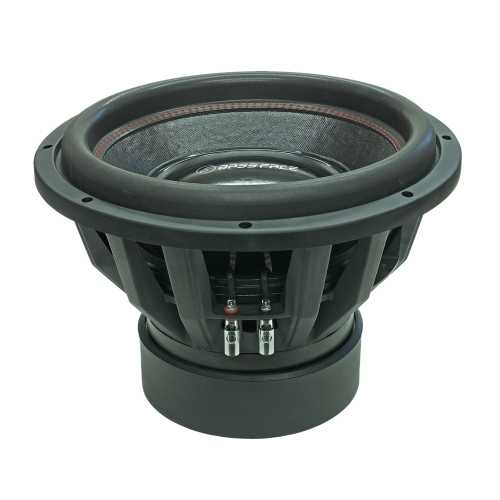

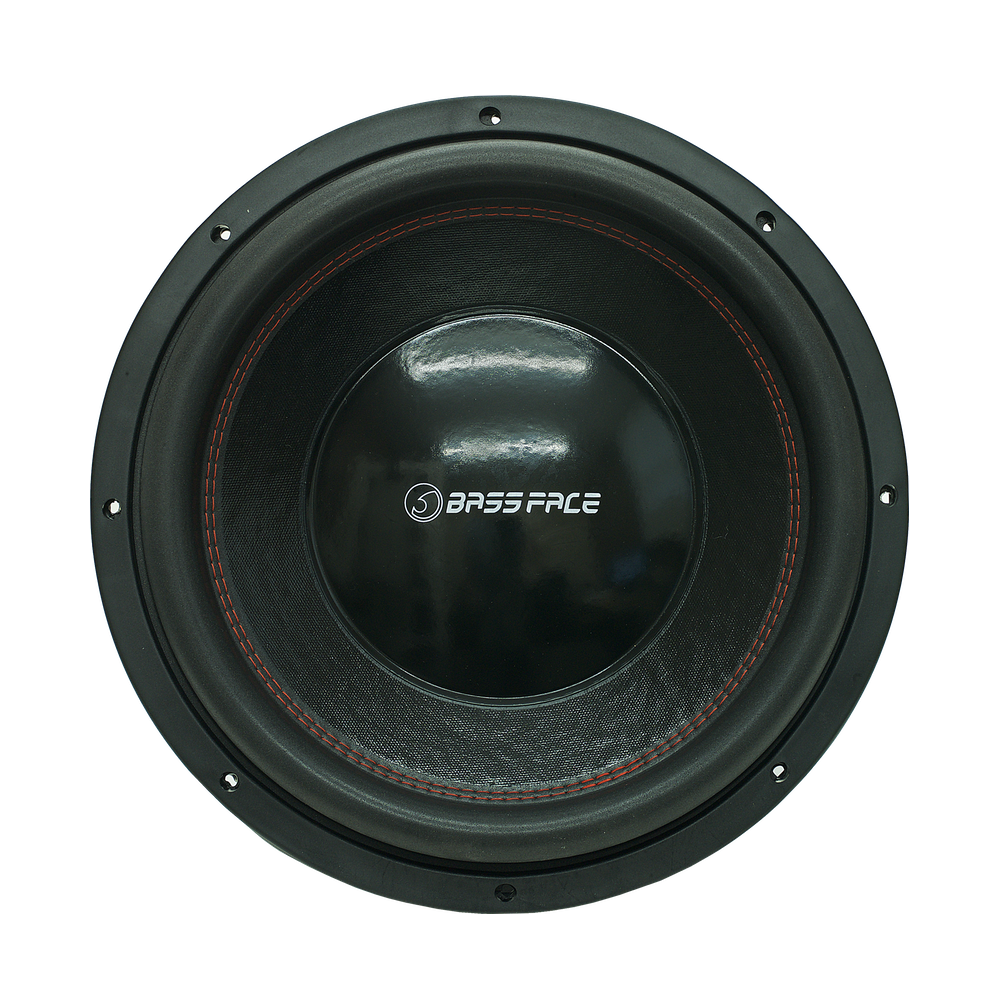

Subwoofer 38 cm XPL15.1 – Hybrid Subwoofer – 3500w rms – 2×2 ohm

Descrizione

Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) 7000
Speaker Maximum Recommended Power RMS (Watts) (One Speaker, Using Appropriate Crossover) 3500
Overall Diameter (mm) 400
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 230
Installation Cutout Diameter (mm) 355
Overall Depth (mm) 295
Mounting Depth (mm) 255
Front Protrusion From Mounting Plane (mm) 40
Impedance (Ohm) (Nominal) 2+2
Sensitivity (db/1Wm) 88
Magnet Weight (Oz) 450
Magnet Type Y35
Recommended Cable 4 AWG
Voice Coil Diameter (mm) 78
Designed For Hybrid Competition Use
3 Inch 4 Layer Round Wire Dual 2 Ohm Voice Coil
450 Oz Triple Stack Y35 Magnet With Cooling System
4 x 2×2 Stacked 10 Inch Linear Nomex Spider
Non Pressed Paper Cone With Kevlar Reinforced Stitching
Custom Designed Tall And Narrow Surround For Extreme Excursion And Control
Highly Rigid Cast Aluminium Basket
Extra Large Dust-cap For Superior Cone Stiffness
Quick Release Push Terminals
Integrated Rubber Gasket

PARAMETRI T-S
Revc (Ohm) 4
Fo (Hz) 43.866
Sd (Cm sq) 808.87
Md (g) 200
BL (T m) 30.423
Qms 6.746
Qes 0.536
Qts 0.496
No (%) 0.414
SPL (Db) 88.2
Vas (Ltr) 27.186
Cms (uM/N) 29.262
Krm (mOhm) 24.329
Erm 0.779
Mms (g) 449.868
MMd (g) 436.640
Kxm (mOhm) 236.089
Exm 0.534
Xmax (mm) 20 (Each Way)

Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 29000
Complete Product Pack Weight (g) 35000
Retail Carton L (mm) 440
Retail Carton W (mm) 440
Retail Carton H (mm) 350
