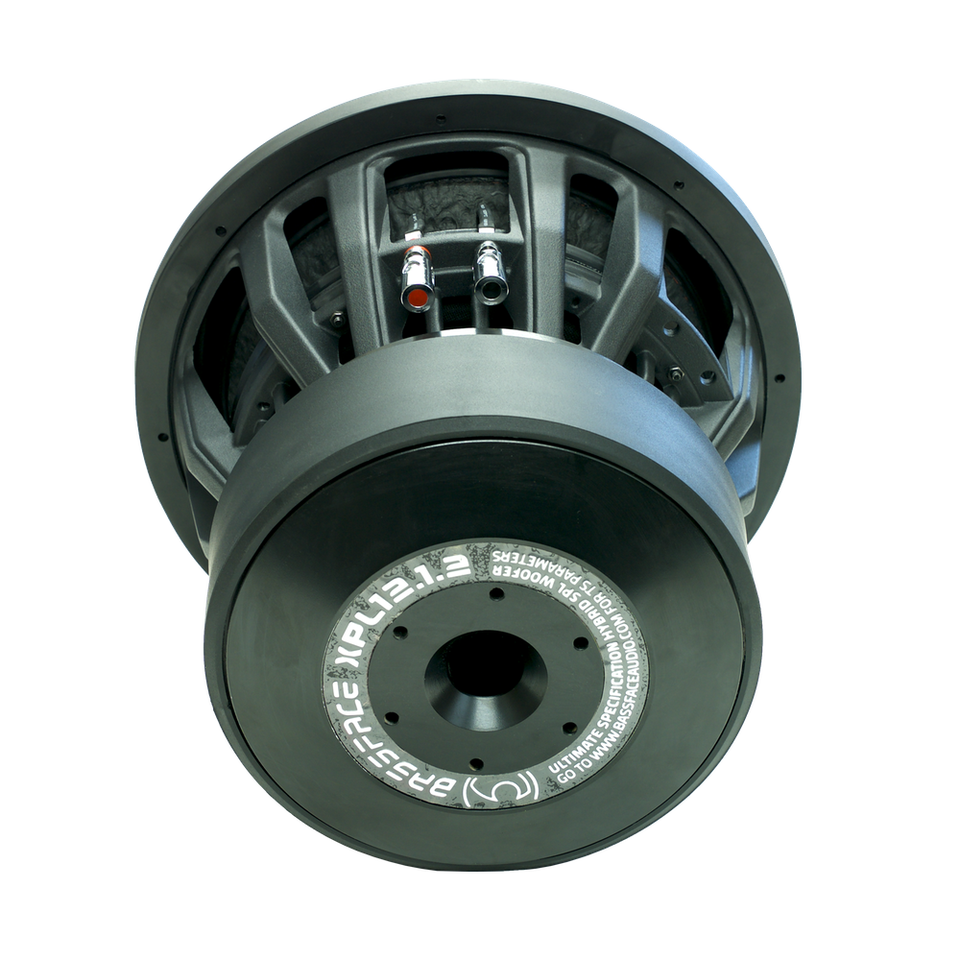

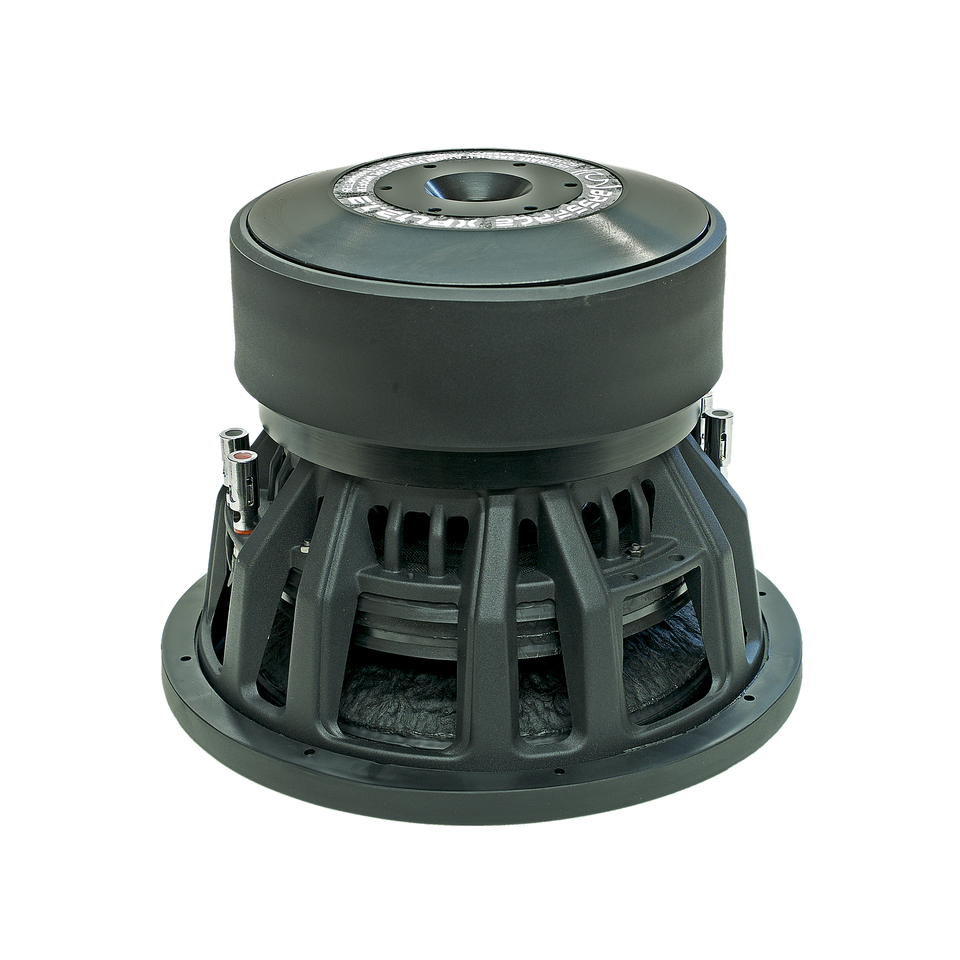

Subwoofer 32 cm XPL12.1 – Hybrid subwoofer 3500W rms – 2×2 ohm

Descrizione

Speaker Maximum Recommended Power (Watts) 7000
Speaker Maximum Recommended Power RMS (Watts) 3500
Overall Diameter (mm) 320
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 230
Installation Cutout Diameter (mm) 280
Overall Depth (mm) 265
Mounting Depth (mm) 225
Front Protrusion From Mounting Plane (mm) 40
Impedance (Ohm) (Nominal) 2+2
Sensitivity (db/1Wm) 90
Magnet Weight (Oz) 450
Magnet Type Y35
Recommended Cable 4 AWG
Voice Coil Diameter (mm) 78

Series Hammer
Barcode 683422302381
Product Net Weight (g) 23100
Complete Product Pack Weight (g) 29100
Retail Carton L (mm) 370
Retail Carton W (mm) 370
Retail Carton H (mm) 330

Designed For Hybrid Competition Use
3 Inch 4 Layer Round Wire Dual 2 Ohm Voice Coil
450 Oz Triple Stack Y35 Magnet With Cooling System
4 x 2×2 Stacked 8 Inch Linear Nomex Spider

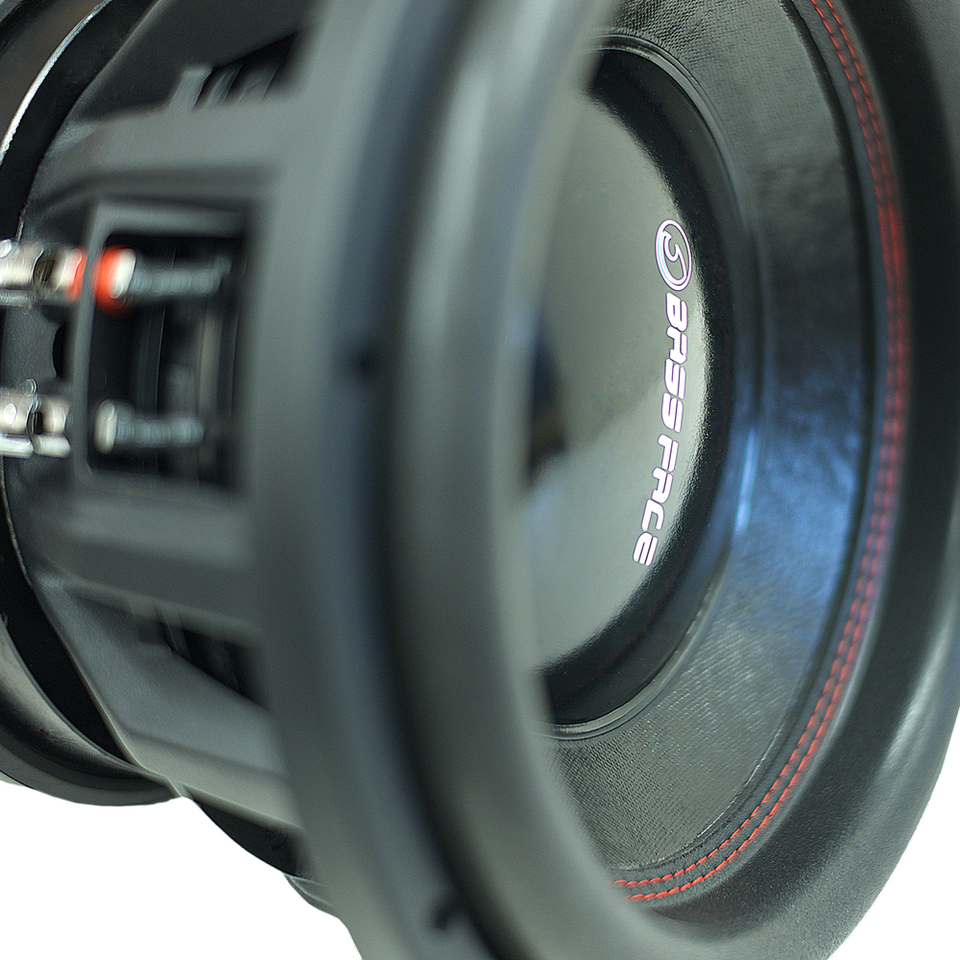

Non Pressed Paper Cone With Kevlar Reinforced Stitching
Custom Designed Tall And Narrow Surround For Extreme Excursion And Control
Highly Rigid Cast Aluminium Basket
Extra Large Dust-cap For Superior Cone Stiffness
Quick Release Push Terminals
Integrated Rubber Gasket
Quick Release Push Terminals

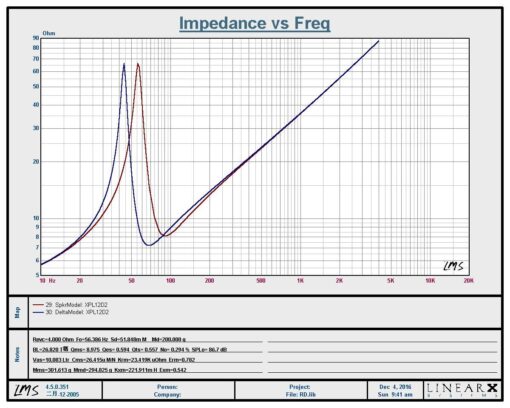

PARAMETRI T-S
Revc (Ohm) 4
Fo (Hz) 56.386
Sd (Cm sq) 518.48
Md (g) 200
BL (T m) 26.820
Qms 8.975
Qes 0.594
Qts 0.557
No (%) 0.294
SPL (Db) 86.7
Vas (Ltr) 10.083
Cms (uM/N) 26.415
Krm (mOhm) 23.419
Erm 0.782
Mms (g) 301.613
MMd (g) 294.825
Kxm (mOhm) 221.911
Exm 0.542
Xmax (mm) 20 (Each Way)
