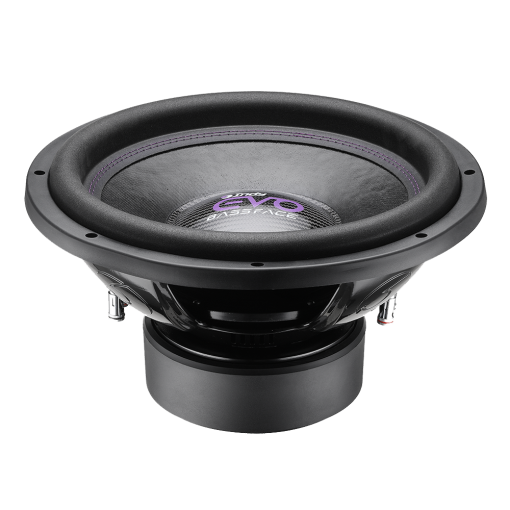

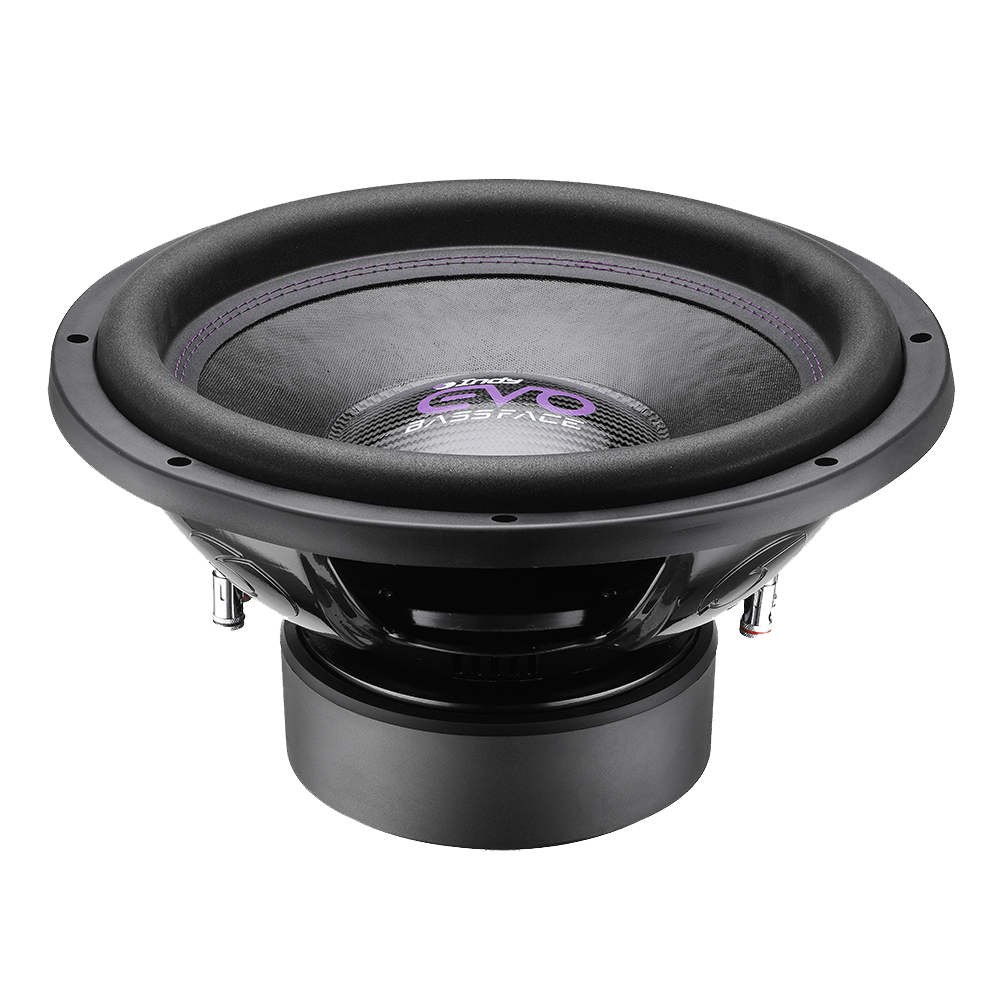

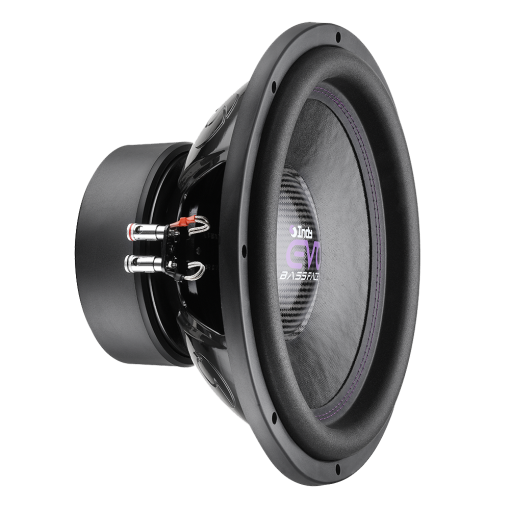

Orgogliosi di presentare i subwoofer IndyEVO15/2 ; “l’evoluzione della perfezione”. Progettazione nata sulla base degli IndyS con lo scopo di offrire un subwoofer ad elevate prestazioni.
Lo sviluppo è stato lungo, design, test di ogni singola parte, re-design e test ancora… Alla fine Abbiamo creato un vero gioiello, “A WOLF IN SHEEP’S CLOTHES”

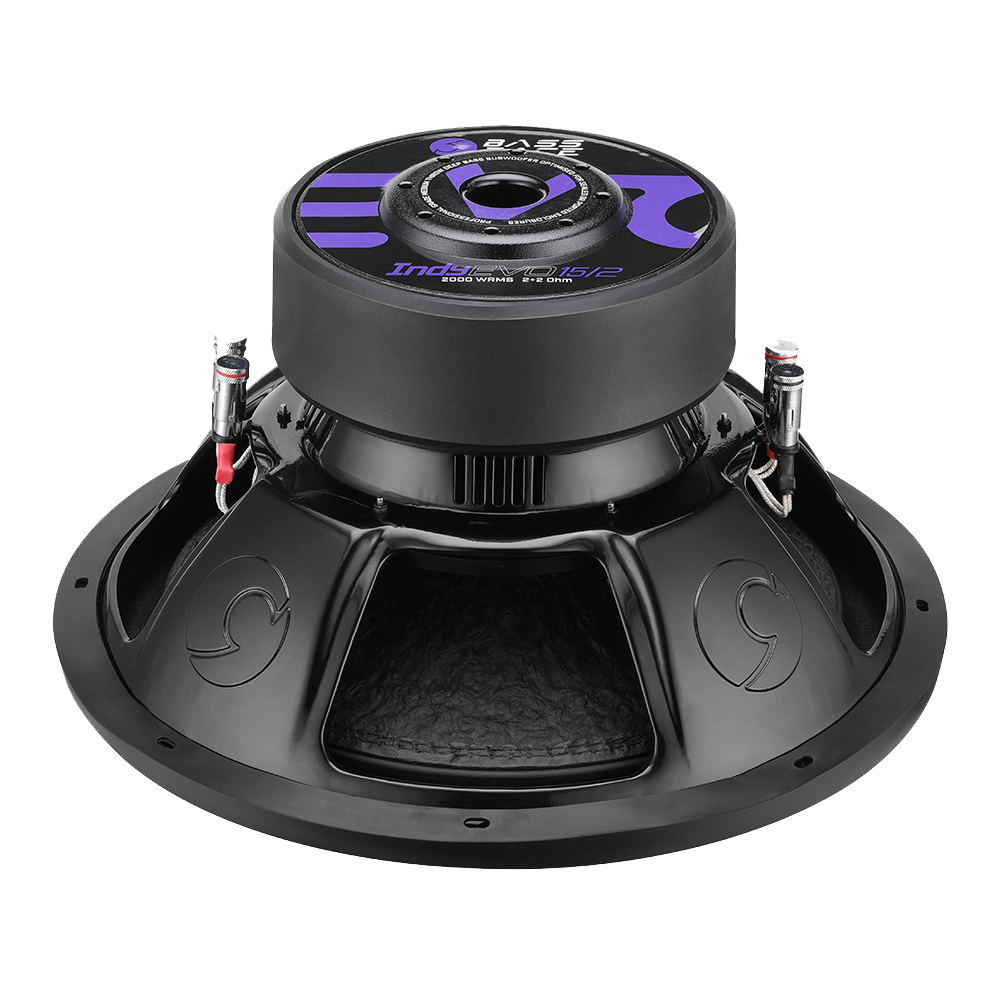

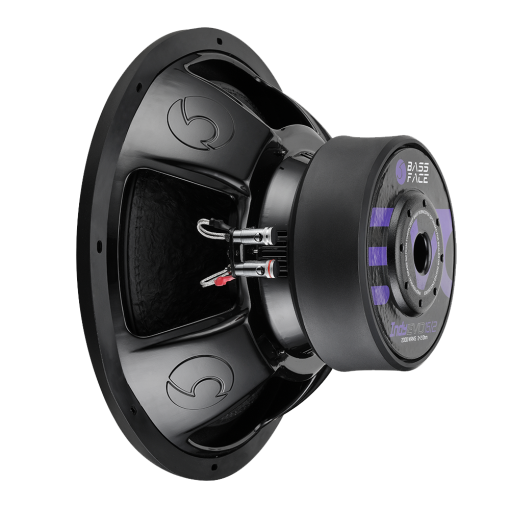

Due magneti 190 x 25 mm Y38 ospitano la speciale bobina da 76,5 mm a filamento piatto in alluminio ed 8 strati; sistema di ventilazione super efficiente per garantire la massima affidabilità anche nelle fasi di utilizzo estremo come durante le competizioni. Gli altri dettagli? lasciamo a te il gusto di guardarli e soprattutto, sentirli!
389,00€ IVA inclusa
SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 2000
Overall Diameter (mm) 392
Installation Cut-out Diameter (mm) 360
Mounting Depth (mm) 195
Front Protrusion From Mounting Plane (mm) 30
Optimum Frequency Range (Hz) 20-80
Impedance (Ohm) (Nominal) 2+2
Total Magnet Weight (Oz) 170
Magnet Size (mm) 190*25
Magnet Type Y38
Magnet Qty 2
Top Plate thickness (mm) 12
Back Plate thickness (mm) 10 and Bump
Recommended Cable 8AWG/OFC
Recommended Bass Enclosure Type Ported
Recommended Bass Enclosure Volume (CuFt) 2-5
Recommended Bass Enclosure Tuning Frequency (Hz) 32
Recommended Box Design Credit Bassface Distribution Ltd
Voice Coil Former Spec Aluminium
Voice Coil Type Flat Wire
Voice Coil Internal Diameter (mm) 76.5
Voice Coil Winding Hight (mm) 40
Voice Coil Winding (Layers) 8
Cone Type Noun pressed paper
Spider Compliance Medium
Spider Type Progressive
Spider Diameter (mm) 195
Spider Design 1×1, spacer, 1×1
Surround Tall smooth
Surround Material Foam
Tinsel Wire Double round wire stitched

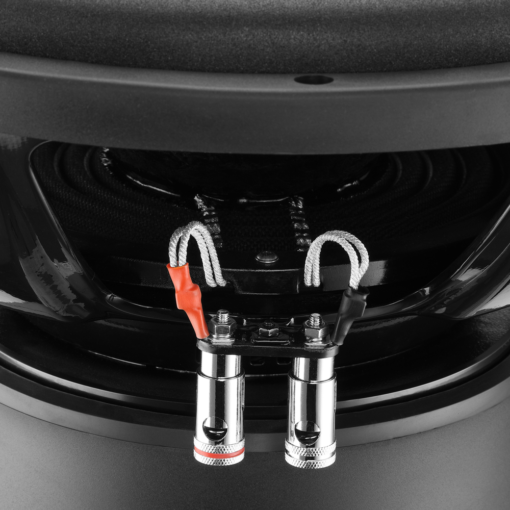

Terminal 4 AWG Push
TECHNICAL HIGHLIGHTS
Custom tooled spiders for added coil control
High roll surround to allow for high excursion and cone area
Soft suspension for deep low notes
Oversized 4 AWG inputs for easy use
Dual tinsel leads for fail-safe in extreme use
Extreme Duty Non Pressed Paper Cone
KEY FACTS
Product Category Subwoofers
Version 1
Series Indy
Barcode 685757152808
Production Status In Build
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 12800
Complete Product Pack Weight (g) 14500
Retail Carton L (mm) 452
Retail Carton W (mm) 452
Retail Carton H (mm) 315
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single
TS PARAMETERS
Test Conditions After Full Brake In
Re (Ohm) 3.78
Cmes(uF) 782.47
Lces(mH) 32.04
Res(Ohm) 79.74
fs(Hz) 31.8
Mms (g) 328.518
MMd (g) 302.745
Rms(kg/s) 5.266
Cms(mm/N) 0.076
Kms(N/mm) 13.1
BL (T m) 20.49
Lambda s -0.004
Qtp 0.652
Qms 12.461
Qes 0.591
Qts 0.564
Vas (Ltr) 69.8503
n0(%) 0.365
Lm(dB) 87.82
SPL nom(dB) 88.07
rmse Z(%) 3.42
rmse Hx(%) 4.81
Sd(cm2) 804.25
Krm (Ohm) 0.0047
Erm 0.92
Kxm (mOhm) 0.0301
Exm 0.79
Xmax Both Way Total (mm) 28
WHAT’S IN THE BOX?
1 x High Performance Dual Voice Coil Subwoofer
1 x Detailed Data Sheet
1 x Detailed Box Design Manual
| diametro | 38 cm |
|---|
