Indy SPL6M/4 – Midrange 16,5 cm -150 w rms High Spl – Singolo

Descrizione

SPEAKER DATA
Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 150
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 120
Overall Diameter (mm) 174
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 120
Installation Cut-Out Diameter (mm) 147
Overall Depth (mm) 87.5
Mounting Depth (mm) 72.5
Front Protrusion From Mounting Plane (mm) 15
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 50-10000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 92.5
Total Magnet Weight (Oz) 30
Magnet Size (mm) 120*20*1pc
Magnet Type Y35
Magnet Qty 1
Top Plate thickness (mm) 6
Back Plate Thickness (mm) 6
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil External Diameter (mm) 40
Voice Coil Winding (Layers) 2
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 108
Spider Design Single
Surround Triple Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push

TECHNICAL HIGHLIGHTS
Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile
1.5″ High Temperature Voice Coil
Lightweight Paper Cone
Push Terminals
Large Ceramic Magnet
Cast Aluminium Basket

KEY FACTS
Product Category Midbass & Midrange Speakers
Version 1
Series Indy
Date Added 24/10/2016
Date Modified 11/07/2023
Barcode 5060905111206
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 1850
Product Height (mm) 87.5
Product Length (mm) 174
Product Width (mm) 174
Complete Product Pack Weight (g) 2240
Retail Carton L (mm) 190
Retail Carton W (mm) 190
Retail Carton H (mm) 115
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

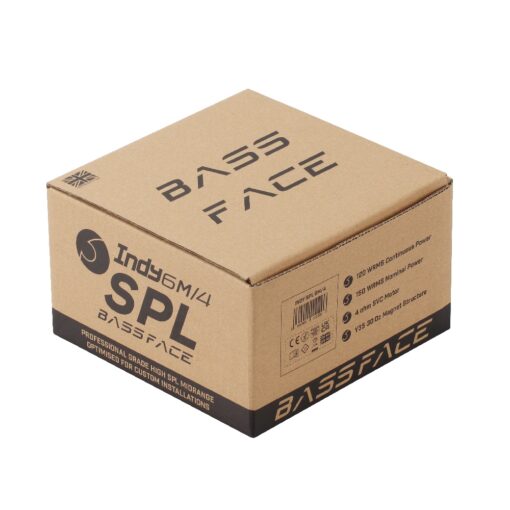

WHAT’S IN THE BOX?
1 x Midrange Driver
1 x Comprehensive Datasheet
1 x Series Window Sticker
1 x Sealing Ring
