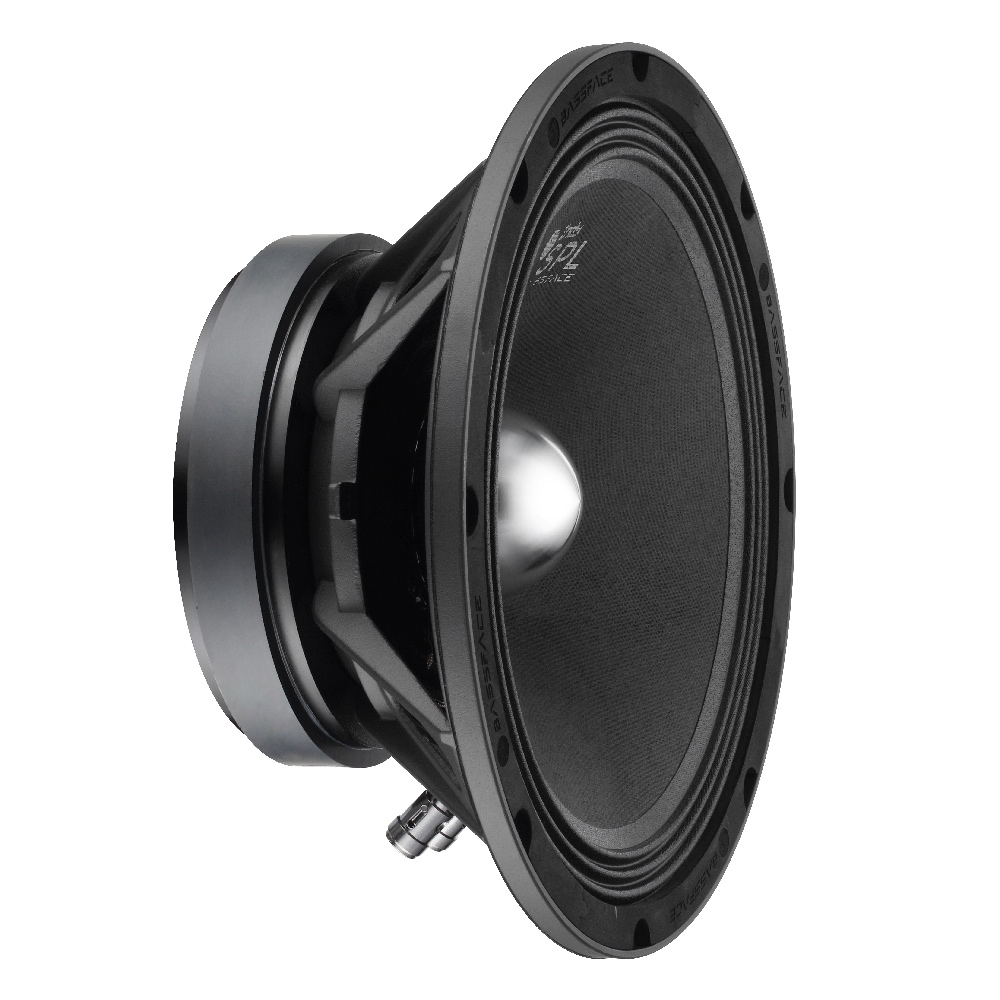

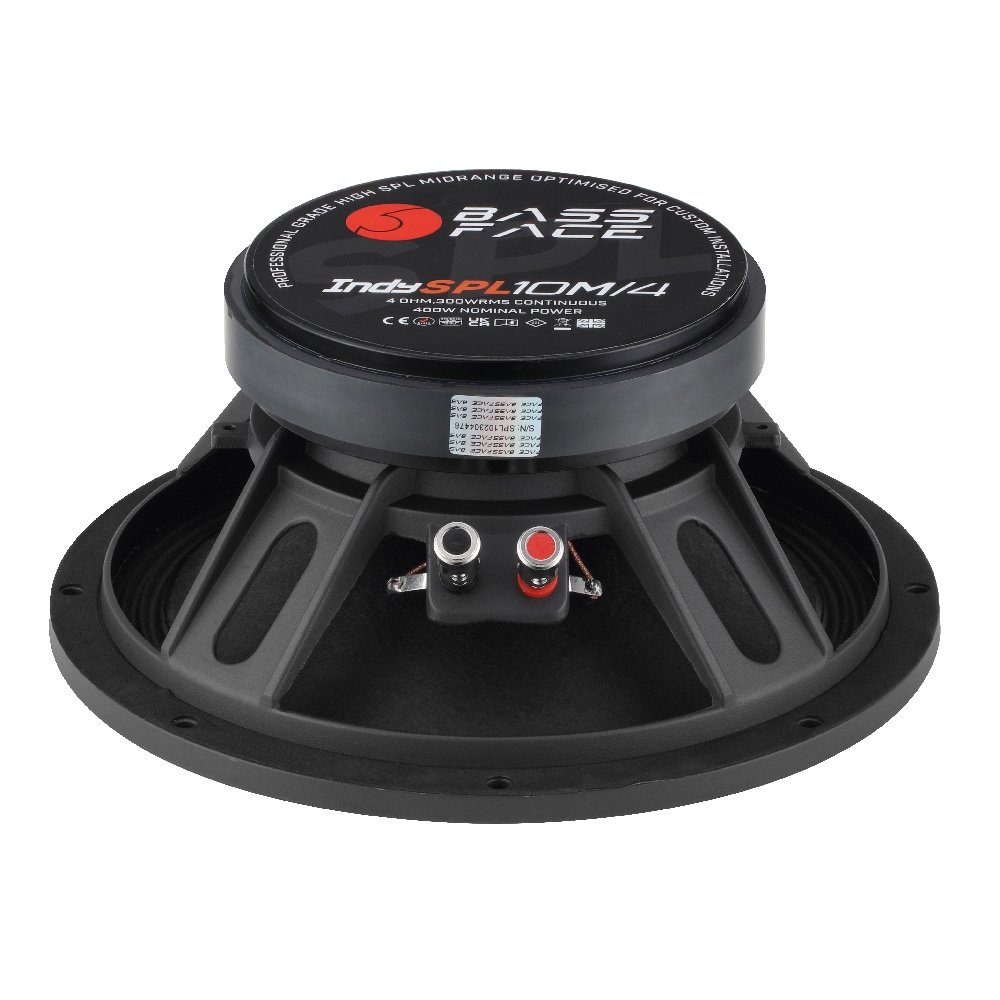

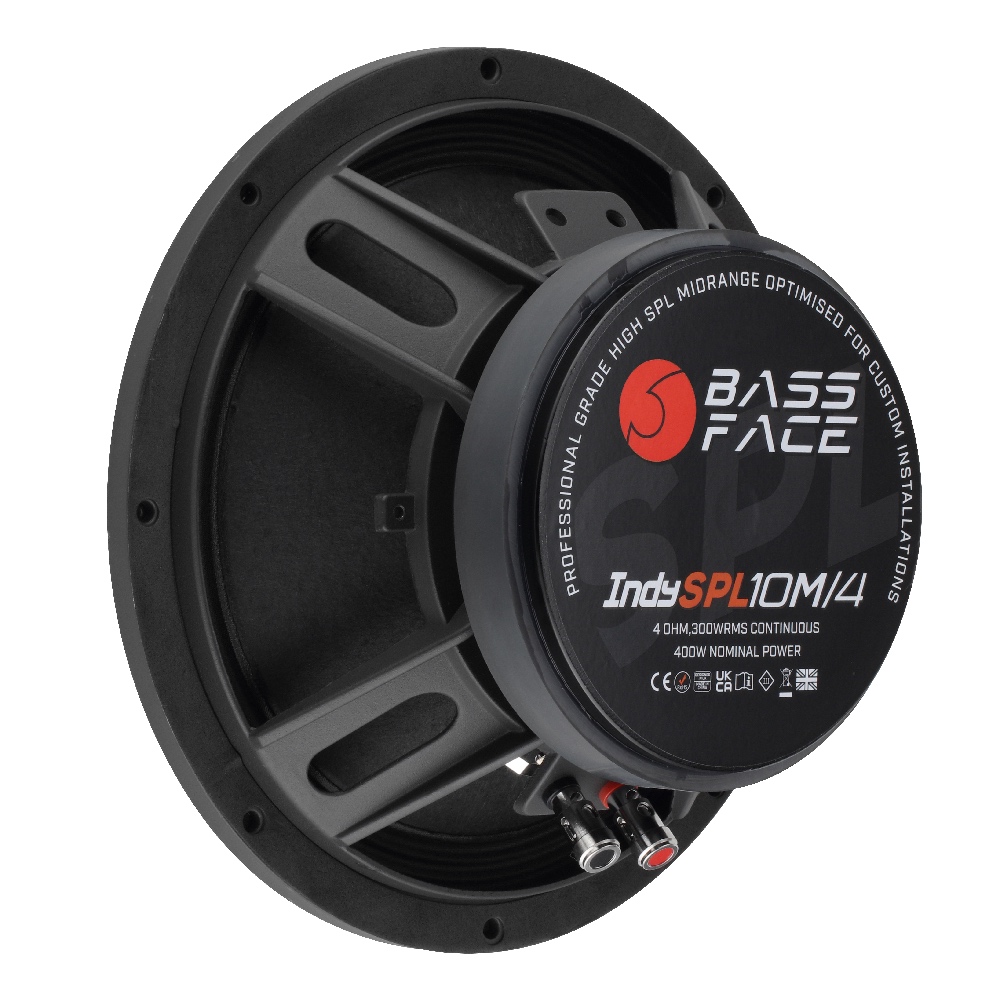

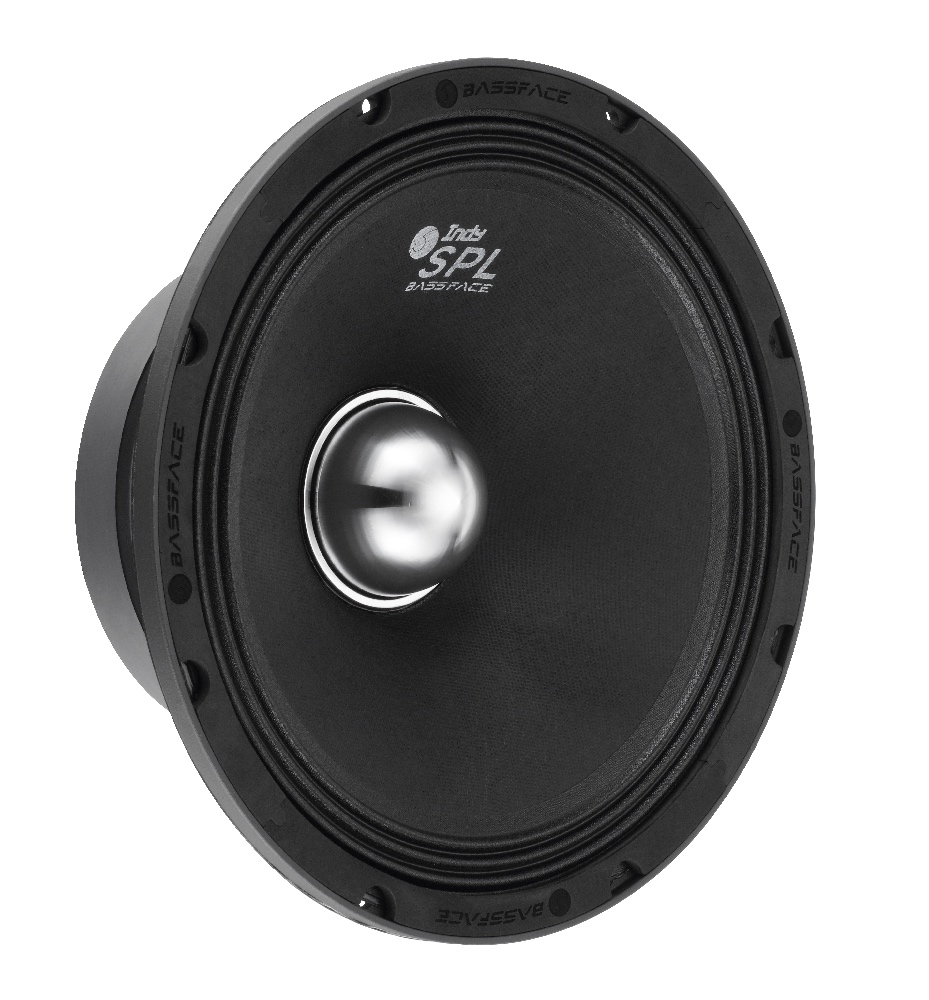

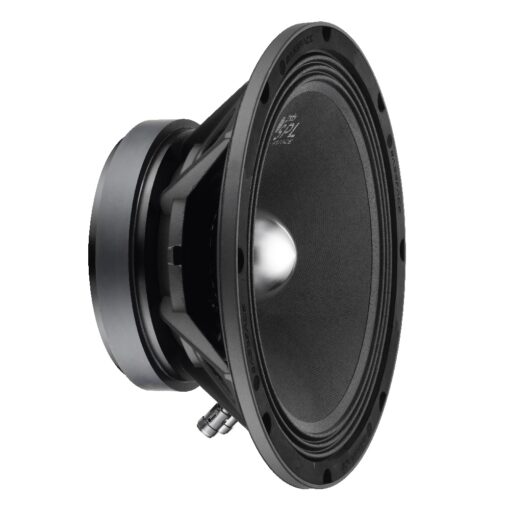

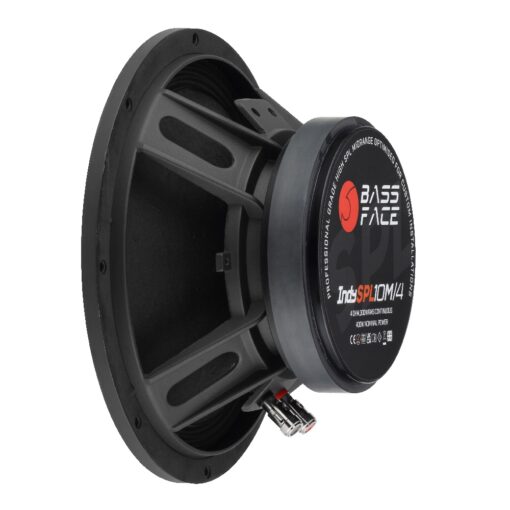

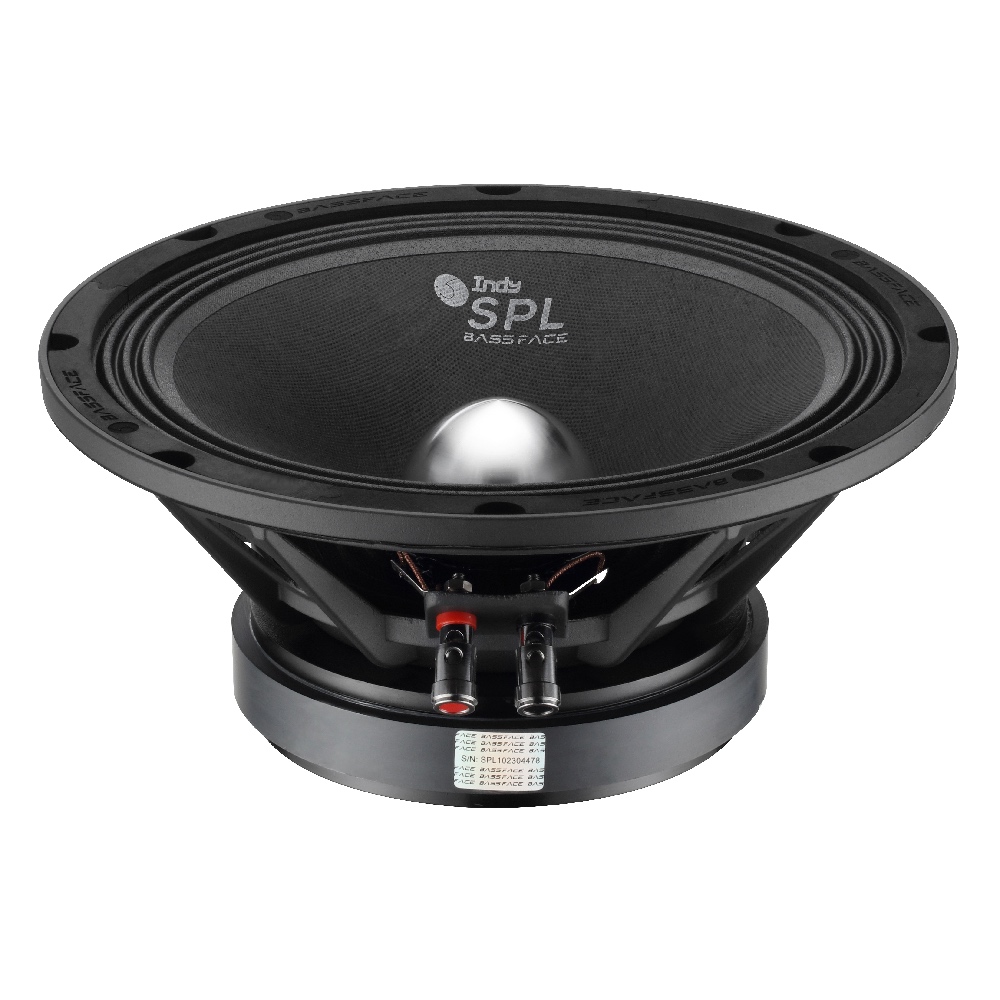

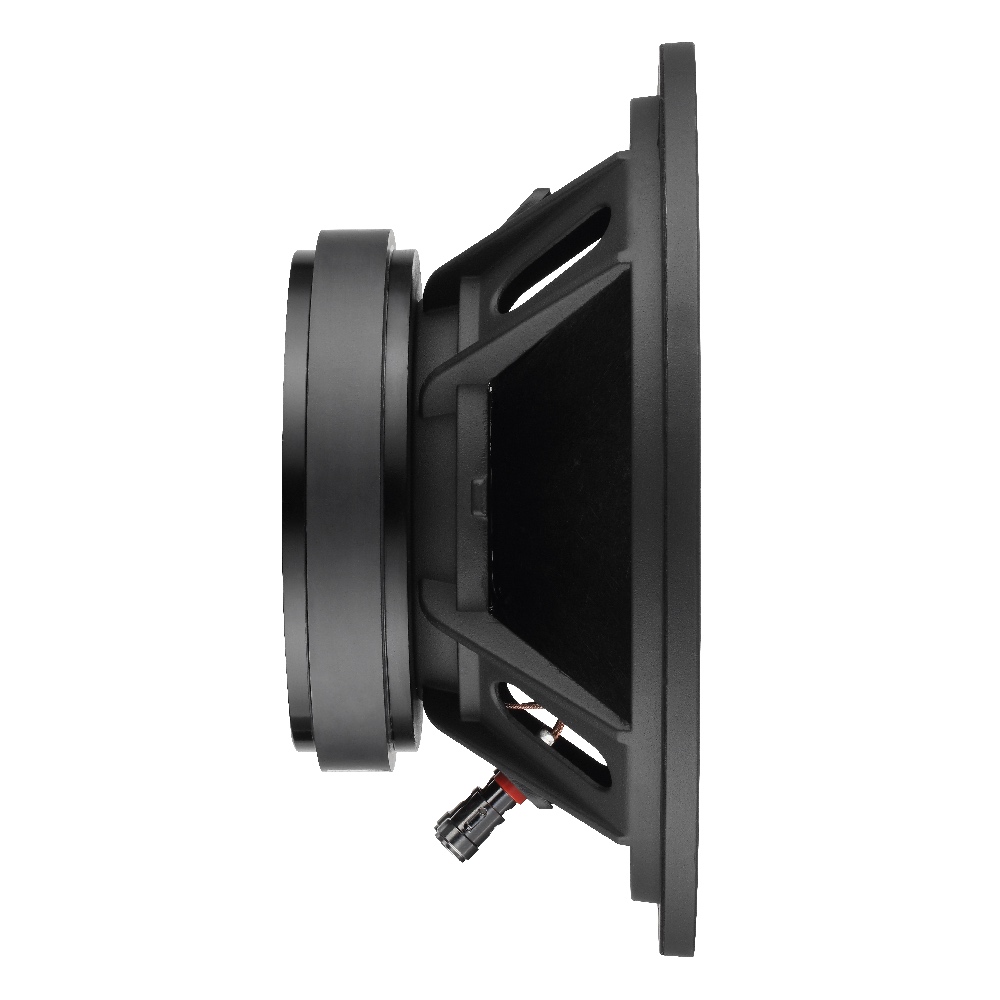

Indy SPL10M/4 – Midrange 25 cm -400 w rms High Spl – Singolo

Descrizione

SPEAKER DATA
Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 400
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 300
Overall Diameter (mm) 260
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 156
Installation Cut-Out Diameter (mm) 234
Overall Depth (mm) 114
Mounting Depth (mm) 104
Front Protrusion From Mounting Plane (mm) 10
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 200-10000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 98.1
Total Magnet Weight (Oz) 53.8
Magnet Size (mm) 156*20*1pc
Magnet Type Y35
Magnet Qty 1
Top Plate thickness (mm) 8
Back Plate Thickness (mm) 8
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil External Diameter (mm) 60
Voice Coil Winding (Layers) 2
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 130
Spider Design Single
Surround Triple Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push

TECHNICAL HIGHLIGHTS
Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile
2.5″ High Temperature Voice Coil
Lightweight Paper Cone
Push Terminals
Large Ceramic Magnet
Cast Aluminium Basket

KEY FACTS
Product Category Midbass & Midrange Speakers
Version 1
Series Indy
Date Added 24/10/2016
Date Modified 11/07/2023
Barcode 5060905111220
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 4150
Product Height (mm) 114
Product Length (mm) 260
Product Width (mm) 260
Complete Product Pack Weight (g) 4620
Retail Carton L (mm) 280
Retail Carton W (mm) 280
Retail Carton H (mm) 140
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

WHAT’S IN THE BOX?
1 x Midrange Driver
1 x Comprehensive Datasheet
1 x Series Window Sticker
1 x Sealing Ring
