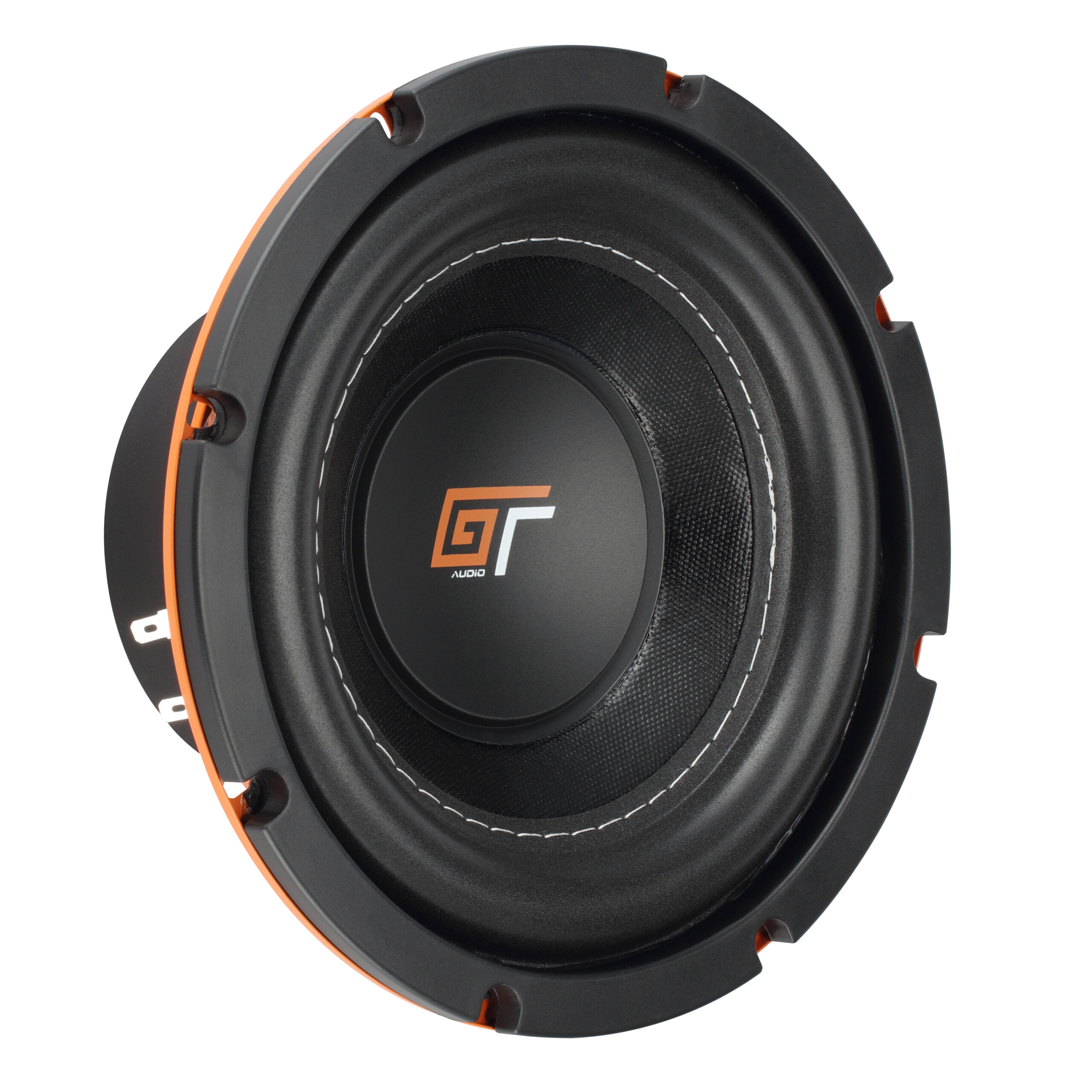

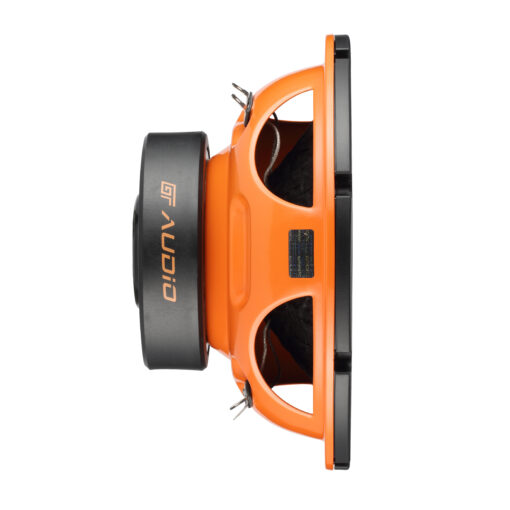

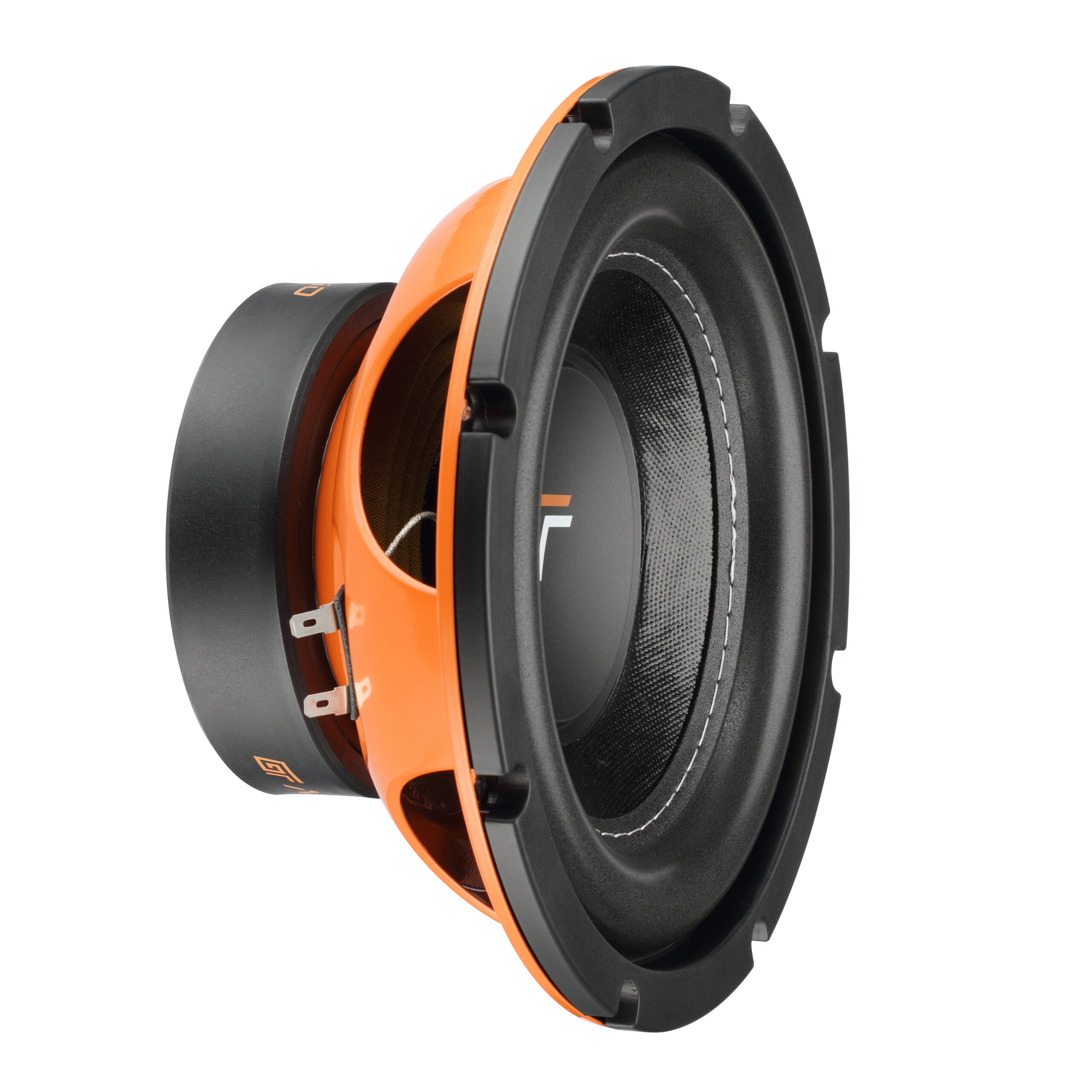

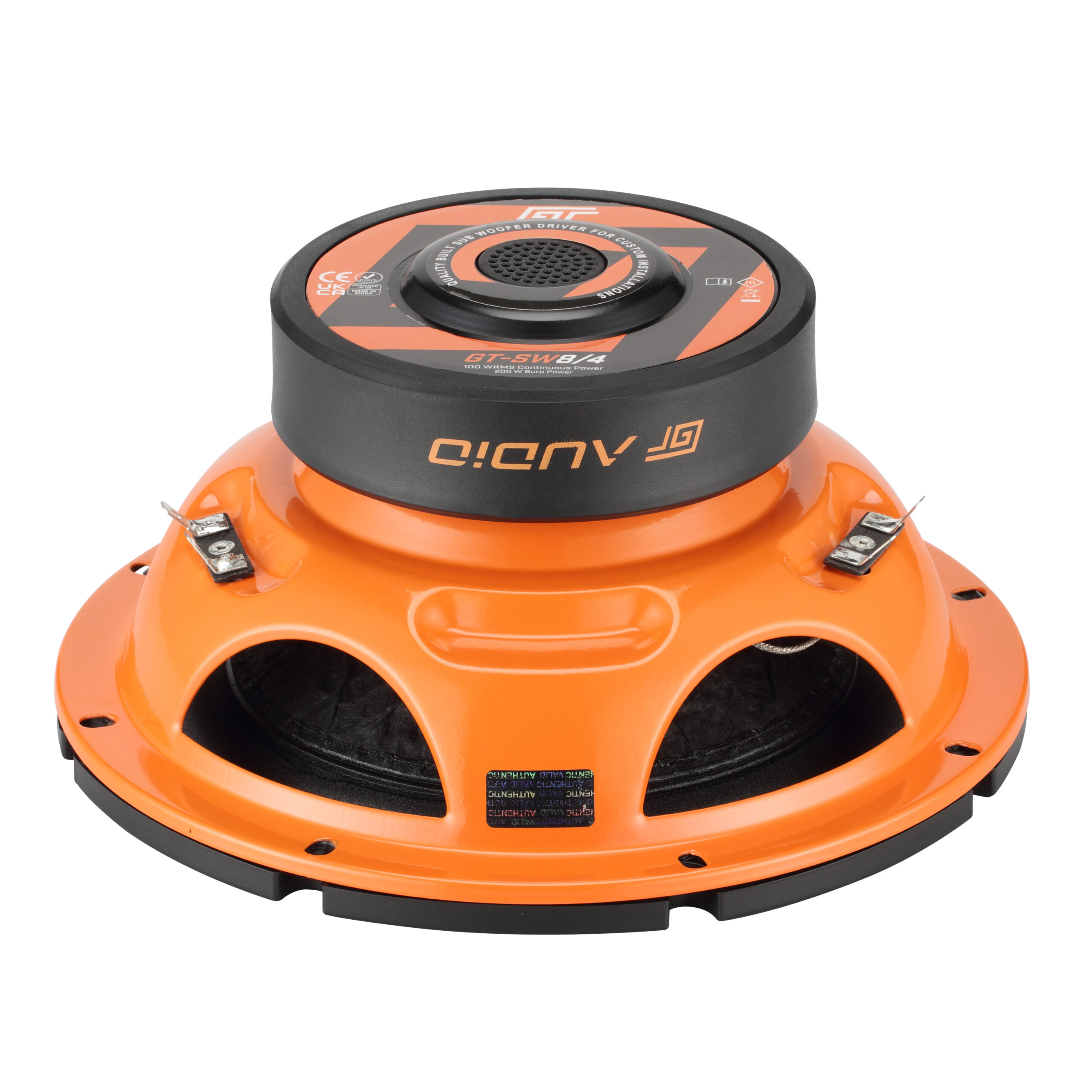

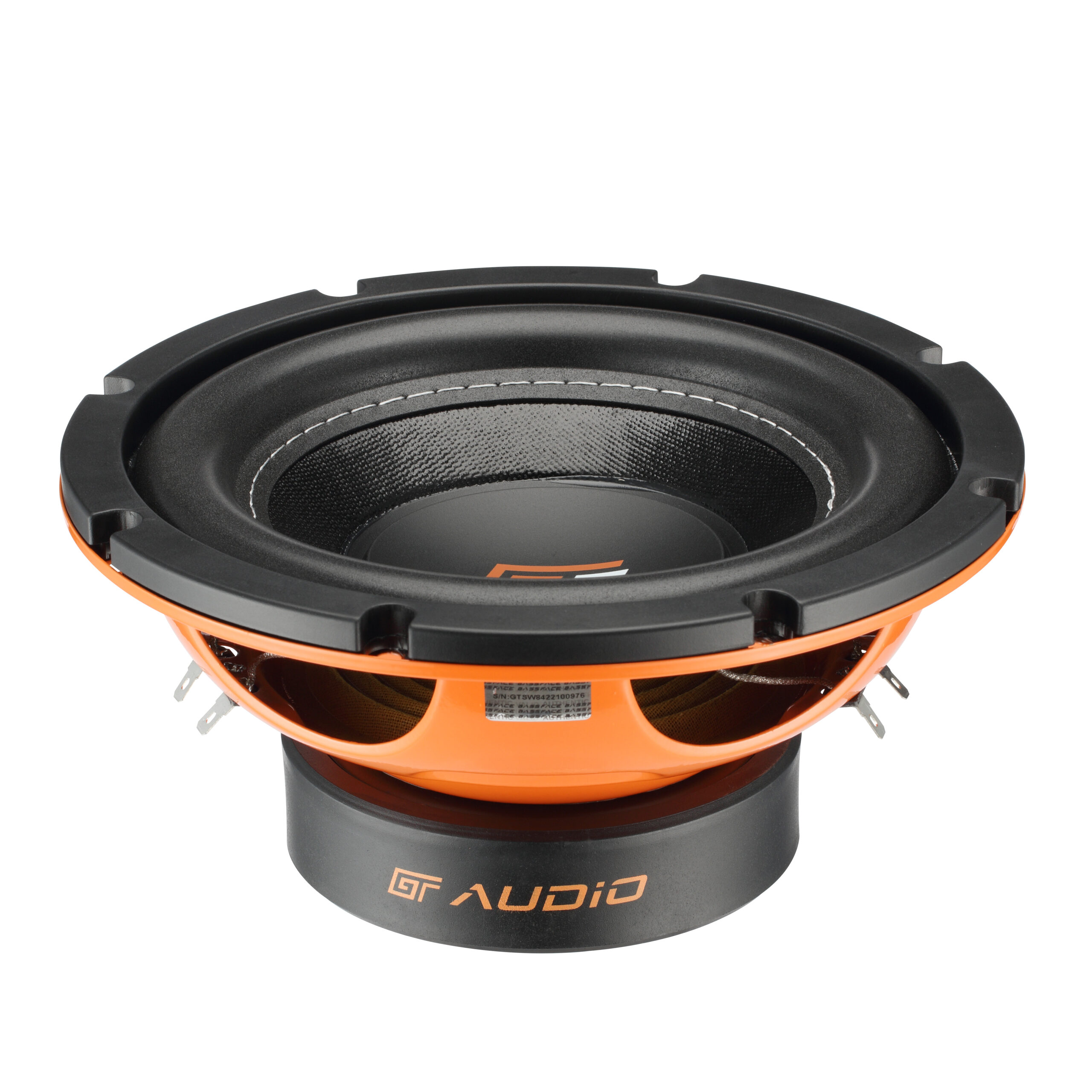

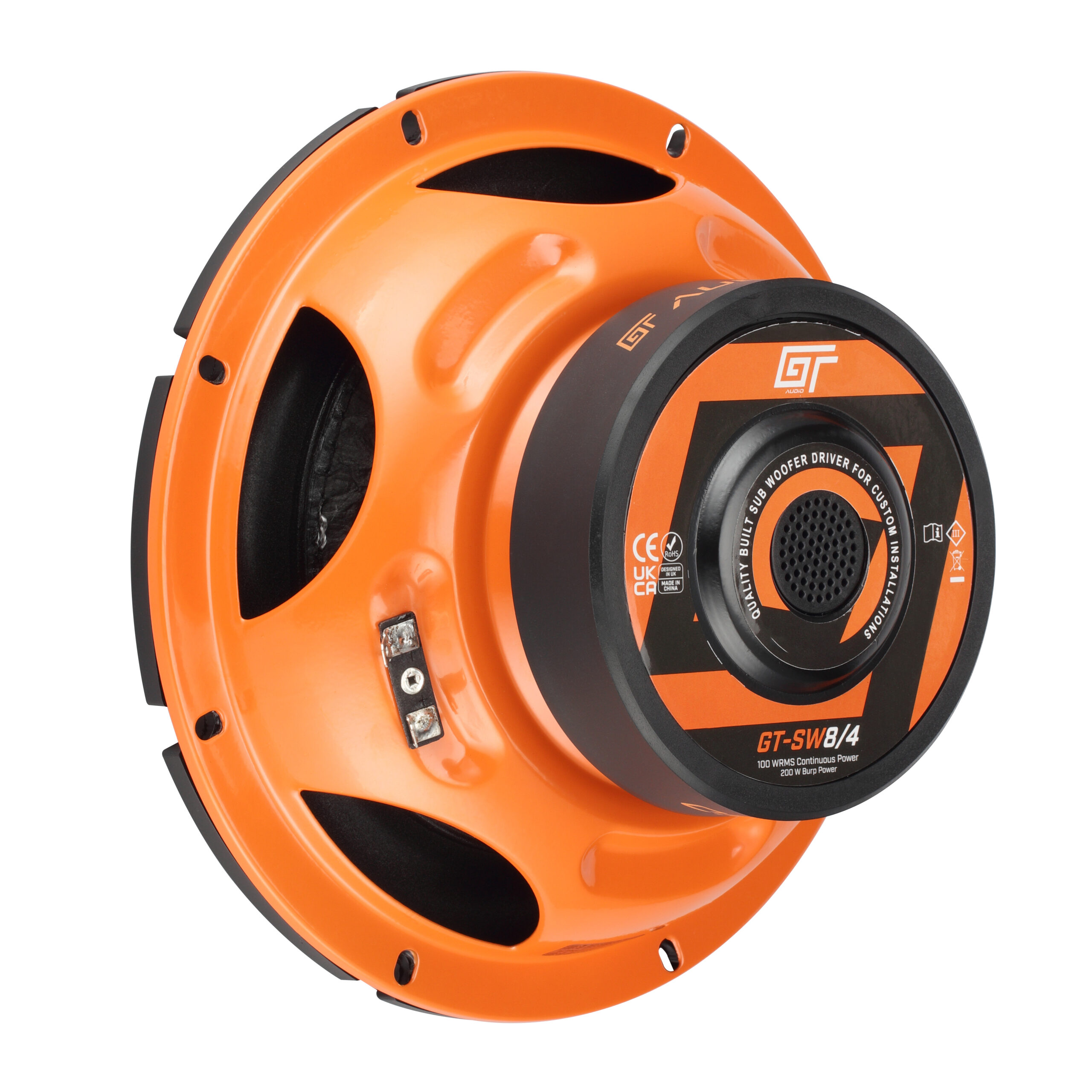

GT-SW8/4 Subwoofer 20 cm GT audio 2×4 ohm 100w rms

Descrizione

SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 100
Overall Diameter (mm) 211
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 110
Installation Cut-out Diameter (mm) 198
Overall Depth (mm) 105
Mounting Depth (mm) 92
Front Protrusion From Mounting Plane (mm) 13
Optimum Frequency Range (Hz) 40>3000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 90
Total Magnet Weight (Oz) 25
Magnet Size (mm) 110*20
Magnet Type y25
Magnet Qty 1
Top Plate thickness (mm) 5
Back Plate thickness (mm) 5
Recommended Bass Enclosure Type Ported/Sealed
Recommended Bass Enclosure Volume (CuFt) 0.88
Recommended Bass Enclosure Tuning Frequency (Hz) 44
Voice Coil Former Spec Aluminium
Voice Coil Type Copper Round Wire
Voice Coil Diameter (mm) 42
Voice Coil Internal Diameter (mm) 38.6
Voice Coil External Diameter (mm) 42
Voice Coil Winding Hight (mm) 15
Voice Coil Winding (Layers) 4
Cone Type Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Design 1×1
Surround Smooth
Surround Material Foam
Tinsel Wire Single
Terminal

KEY FACTS
Product Category Subwoofers
Version 1
Series GT
Date Added 16/11/2022
Date Modified 02/02/2023
Barcode 5060905111121
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 1.5
Product Height (mm) 105
Product Length (mm) 211
Product Width (mm) 211
Complete Product Pack Weight (g) 1.7
Retail Carton L (mm) 230
Retail Carton W (mm) 230
Retail Carton H (mm) 117
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

TS PARAMETERS
Re (Ohm) 3.4
Cmes(uF) 1890.33
Lces(mH) 6.398
fs(Hz) 45.765
Mms (g) 38.137
MMd (g) 36.612
Rms(kg/s) 2.64
Cms(mm/N) 0.317
BL (T m) 4.491
Qms 4.153
Qes 0.924
Qts 0.756
Vas (Ltr) 16.5962
Sd(cm2) 194
SPL (db/1Wm) 90
Xmax Single Way Total (mm) 5
Xmax Both Way Total (mm) 10
EBP 49.53

WHAT’S IN THE BOX?
1 x High Performance Subwoofer
1 x GT AUDIO Sticker
1 x Data Sheet
