Amplificatore 2 canali – DB2.2 – Alta Potenza Classe AB

Descrizione

Amplifier Data
Genuine Useable RMS Power, 4Ohm (Watts), < 1%THD, 14v 450×2
Genuine Useable RMS Power, 2Ohm (Watts), < 1%THD, 14v 620×2
Genuine Useable RMS Power, 4Ohm Bridge (Watts), < 1%THD, 14v 1240×1
Frequency Response (Hz) 10-25000
THD Continuous 4 Ohm 1Khz/100Hz (%) <0.04 Signal To Noise Ratio (db) >100
LPF (Hz) 50-120
HPF (Hz) 50-750
Bass Boost (Db) 0-18
Boost Frequency (Hz) 40
Audio Signal Input Voltage (V) 0.2-8
LPF Slope (Db/Oct) 24
HPF Slope (Db/Oct) 24
Amplifier Topology Class A/B

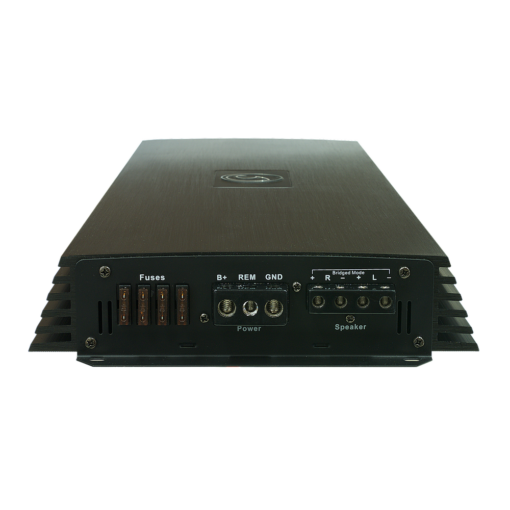

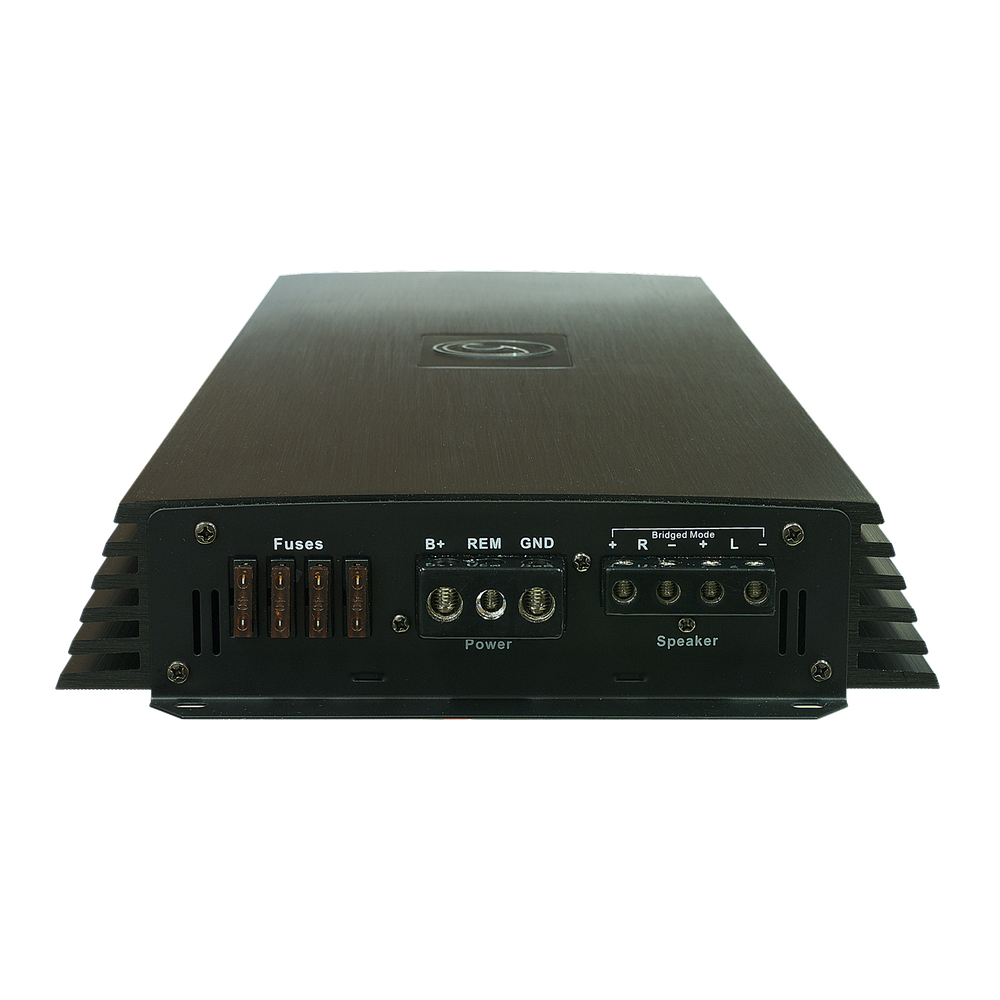

Fuse Rating (Amps) 4×40
Power Wire Input Gauge (AWG) 4
Recommended Wiring Kit and Accessories PWK4.1 RCA5.1
Minimum Recommend Final Load Per Channel (Ohms) 2
Channel Separation (Db) >60
Technical Highlights
High Fidelity Class A/B Topology

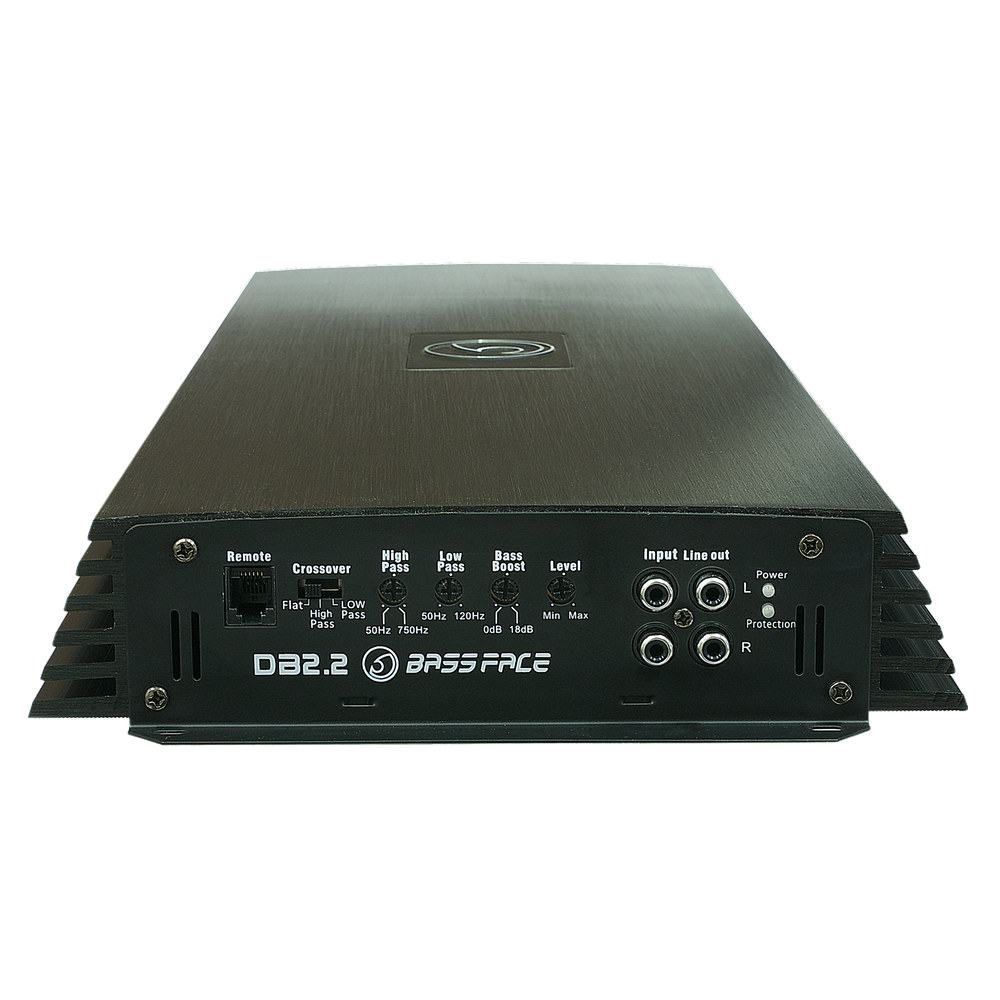

Remote Level Control (Included)
Line Out For Multi Amp Systems
Soft Turn On/Off
Variable Low Pass filter at 24db/oct
Variable High Pass filter at 24db/oct
Variable Bass Boost

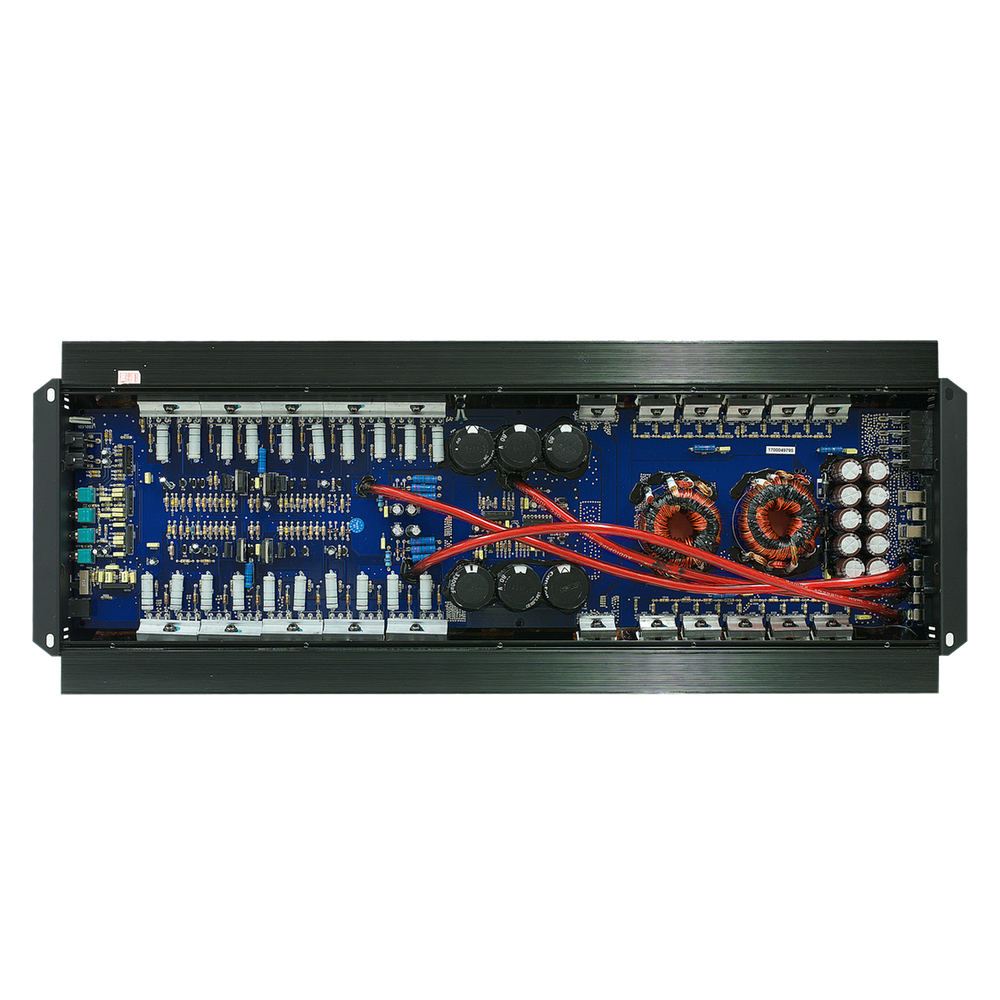

Double Sided PCB Circuit Board
T.D.O.S. Amplifier Protection Circuitry
O.P.S. Oversized Power Supply
Up To 6V Ready Pre Amp Input Stage
Ultra Low THD Audiophile Components

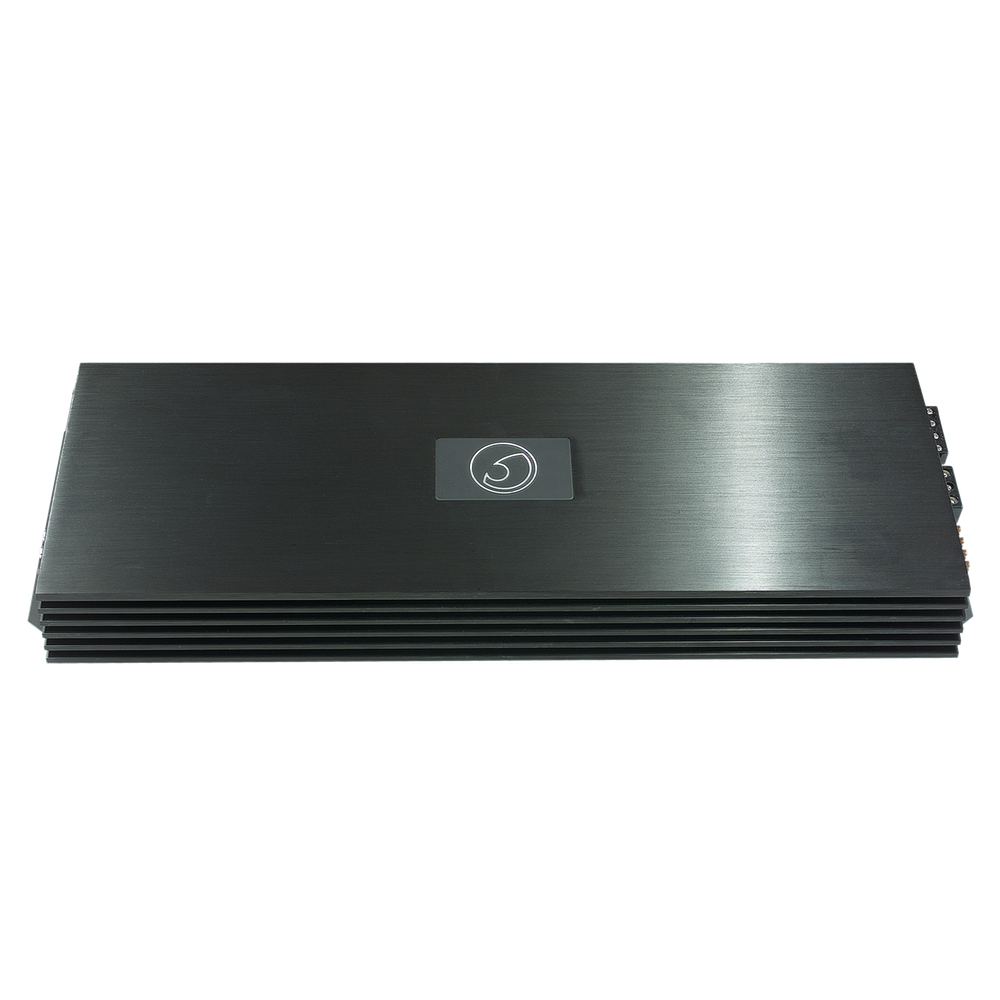

High Density Cast Aluminium Heatsink Body
Thermally Efficient Heat-sink Coating
Key Facts
Product Category Amplifiers
Version 3
Series Hammer
Barcode 617529407724
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 7242
Product Height (mm) 60
Product Length (mm) 625
Product Width (mm) 242
Complete Product Pack Weight (g) 7950
Retail Carton L (mm) 730
Retail Carton W (mm) 280
Retail Carton H (mm) 98
Warranty (Months) 12
Sold As Single
